Transceiver Cables for RigExpert Interfaces
(all rigs)
Attention: If someone sells you a product with a 25-pin transceiver connector which is “compatible” to RigExpert products, then be aware: this is a theft and a forgery. We have never given permission to copy our work to any of companies. The pin-out of the 25-pin transceiver connector is copyright by RigExpert.
Check the availability of the pre-assembled cables on your local distributor’s website.
Please notice the following:
- An on-cable CW paddle socket is not needed, since it is already built into RigExpert Plus/TI-5 and not used for RigExpert Standard/TI-7/TI-8/WTI-1.
- For dual-channel transceivers (Yaesu FT-1000MP, Icom IC-7800, Ten-Tec Orion), please see the corresponding dual-channel diagrams.
- EchoLink users: the diagrams do not show the connection of transceiver squelch output and pin 5 of the 25-pin plug. Please add this connection to use the hardware squelch feature.
For other models which are not in the list please see the following articles: Designing Transceiver Cables and 25-pin transceiver connector.
- Yaesu part 1
- Yaesu part 2
- Icom
- Kenwood
- Ten-Tec
- Elecraft
- Alinco
- JRC
- Small Wonder Labs
- SGC
- SteppIR

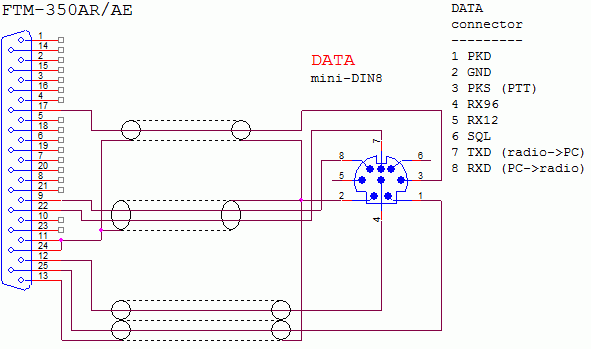

Yaesu transceiver cables part 1
For FT-2000, please turn Off menu #029 (#030 with newer firmware), “CAT RTS”.
For FT-2000, please turn Off menu #029 (#030 with newer firmware), “CAT RTS”.
For FT-2000, please turn Off menu #029 (#030 with newer firmware), “CAT RTS”.

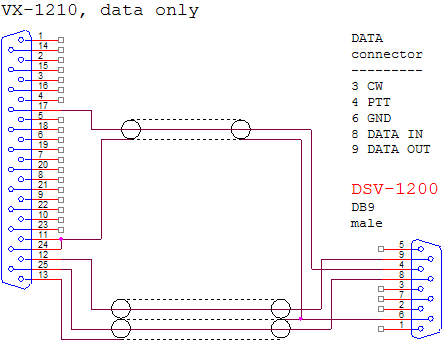

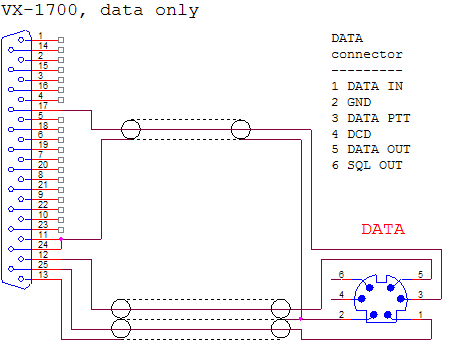

Yaesu transceiver cables part 2

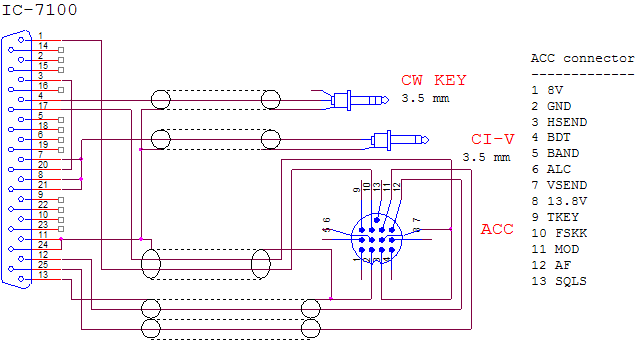

Icom transceiver cables

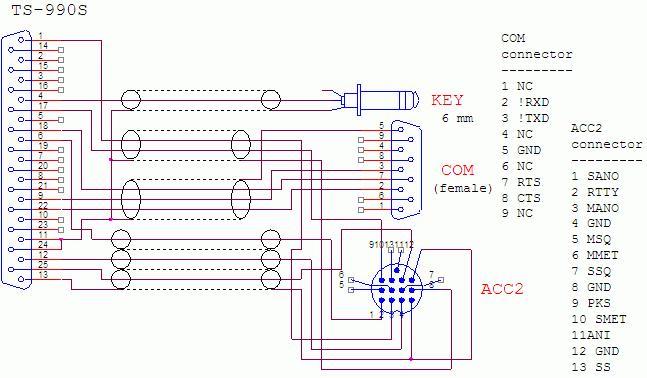

Kenwood transceiver cables

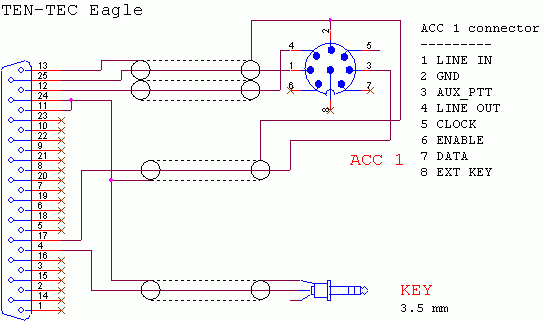

Ten-Tec transceiver cables

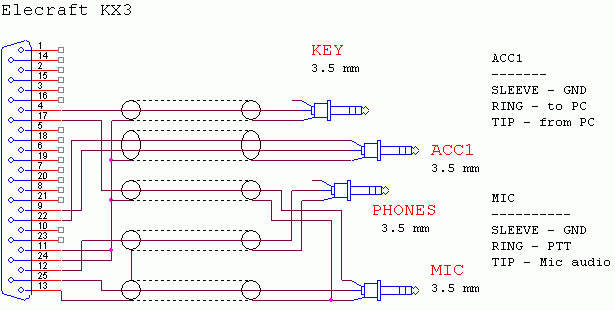

Elecraft transceiver cables
Alinco transceiver cables
JRC transceiver cables
Small Wonder Labs transceiver cables
SGC transceiver cables

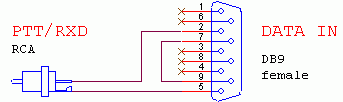

SteppIR cables
Please set the PTT/RXD jumper on the PC board of the TI-5 to the “RXD” position.
